HP Series

Recovery Winches

Powerful BRADEN HP Series hydraulic planetary winches deliver best-in-class line pull and engineered performance for the toughest applications. With line pull ratings from 35,000 to 160,000 lb (15,876 to 72,757 kg), these models set the standard for heavy duty winches in the oilfield, hauling, recovery and other markets.

Features & Benefits

  • Sealed, high-efficiency gear system to maximize hydraulic horsepower and provide continuous duty performance
  • Negative draft jaw clutch for full engagement under load
  • Patented BRADEN brake valve enables smooth operation and precise load control
  • Heat-treated alloy steel drum shafts for extra load capacity
  • Multi-disc static wet brake for smooth operation and fail-safe load handling
  • Simple installation and serviceability
  • SAE J706 compliant

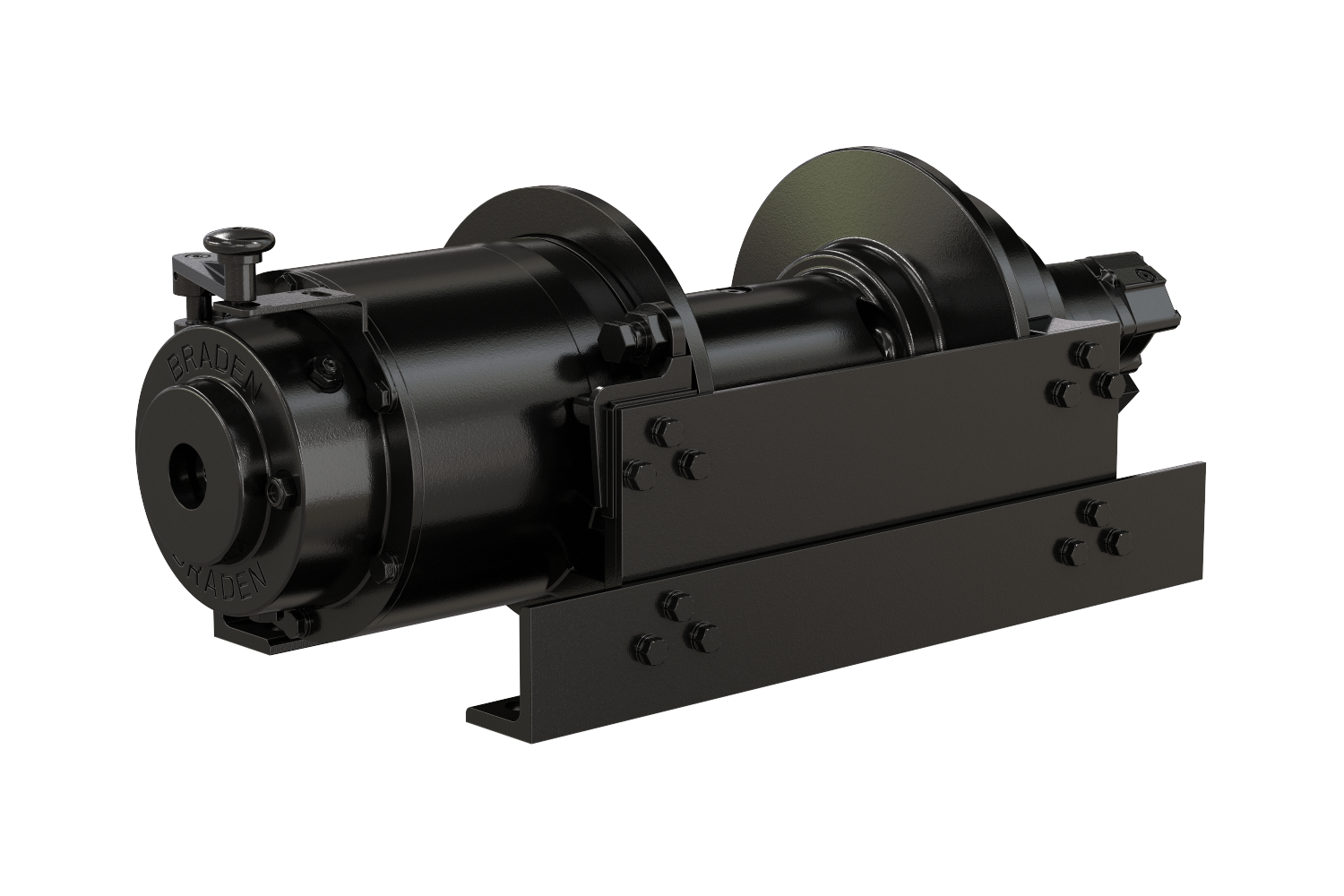

HP35A

Recovery Winches
Rated Line Pull:
35,000 lb (15,867 kg)

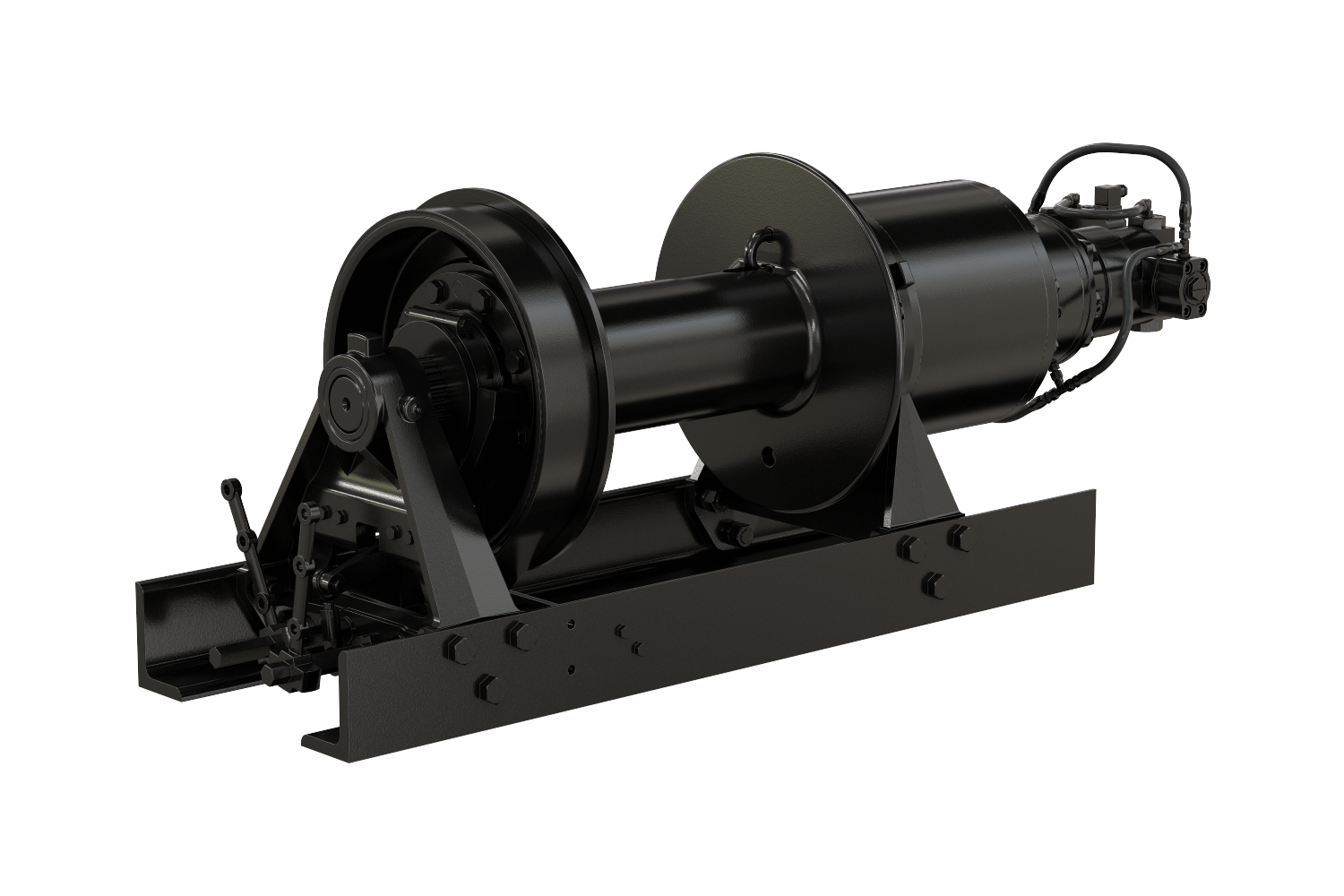

HP50B

Recovery Winches
Rated Line Pull:
50,000 lb (22,680 kg)

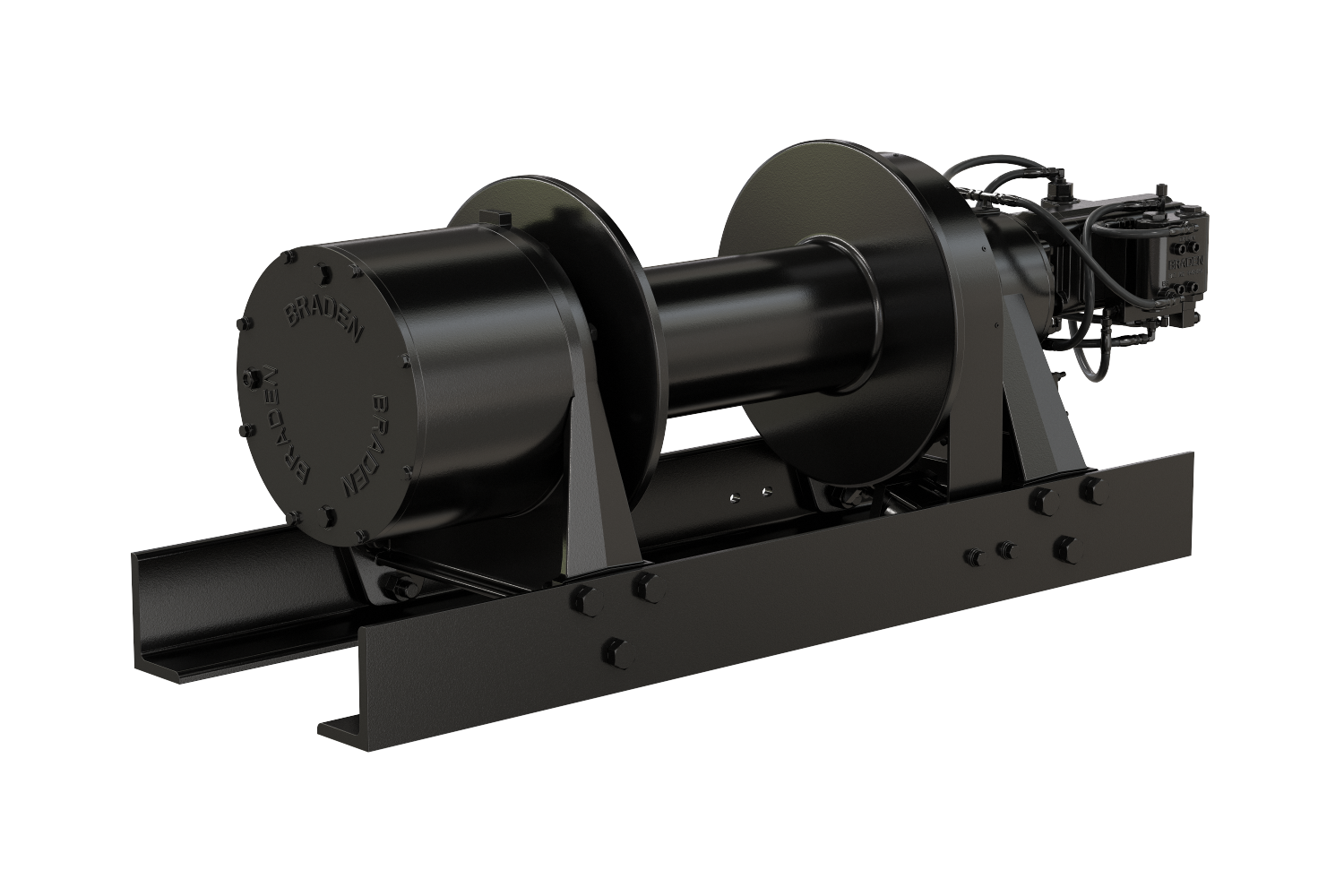

HP65A

Recovery Winches
Rated Line Pull:
68,500 lb (31,071 kg)

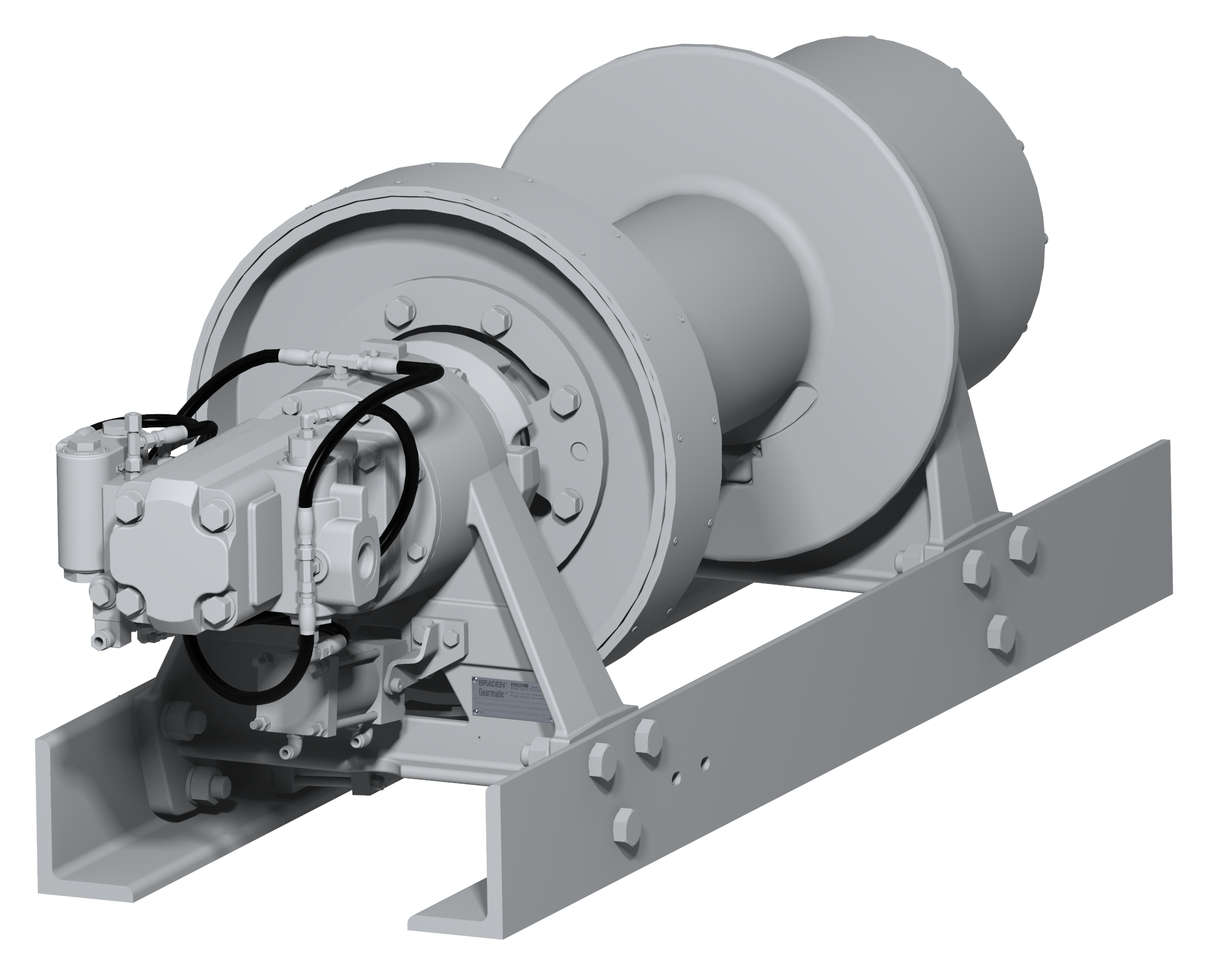

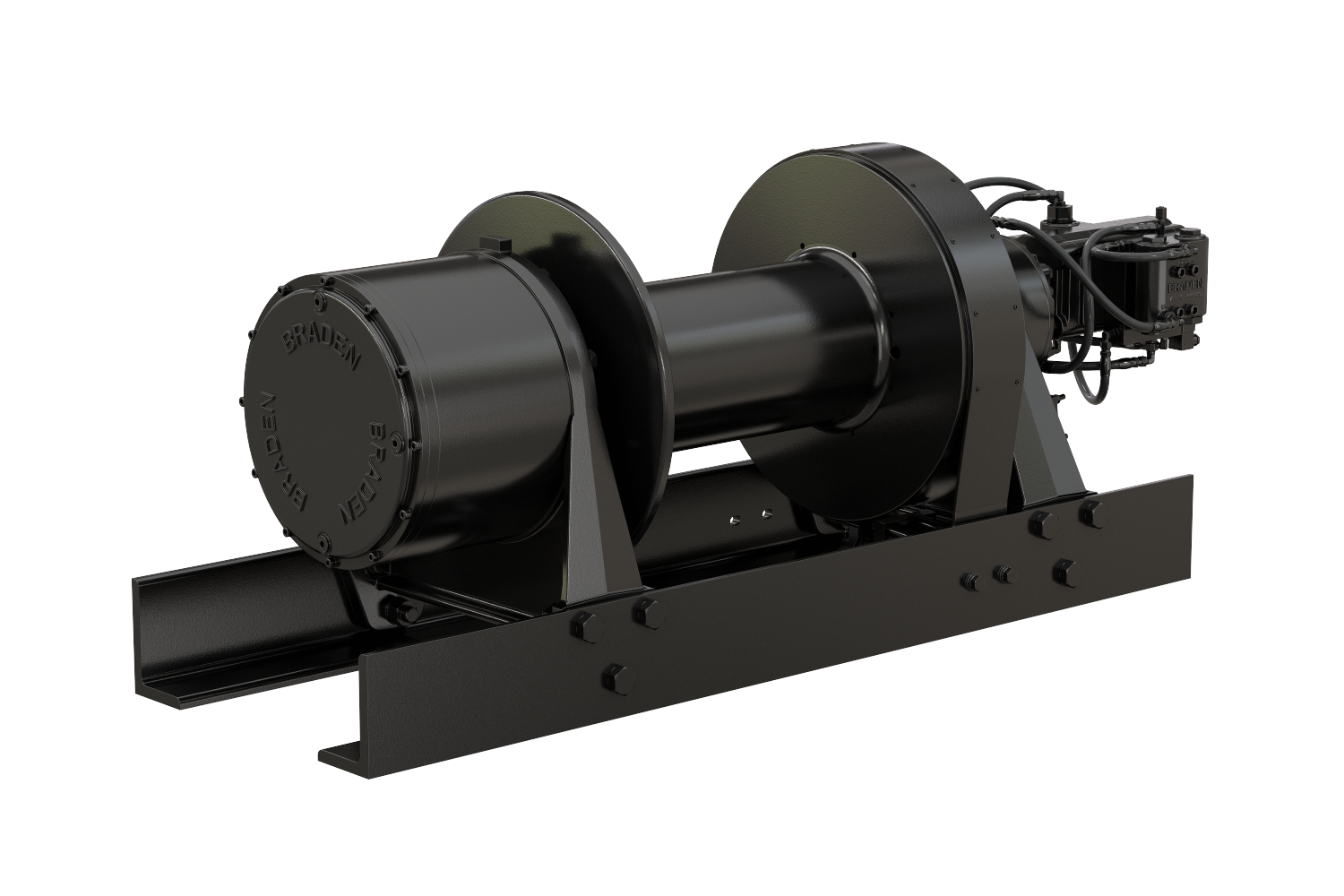

HP80A

Recovery Winches
Rated Line Pull:
80,000 lb (36,287 kg)

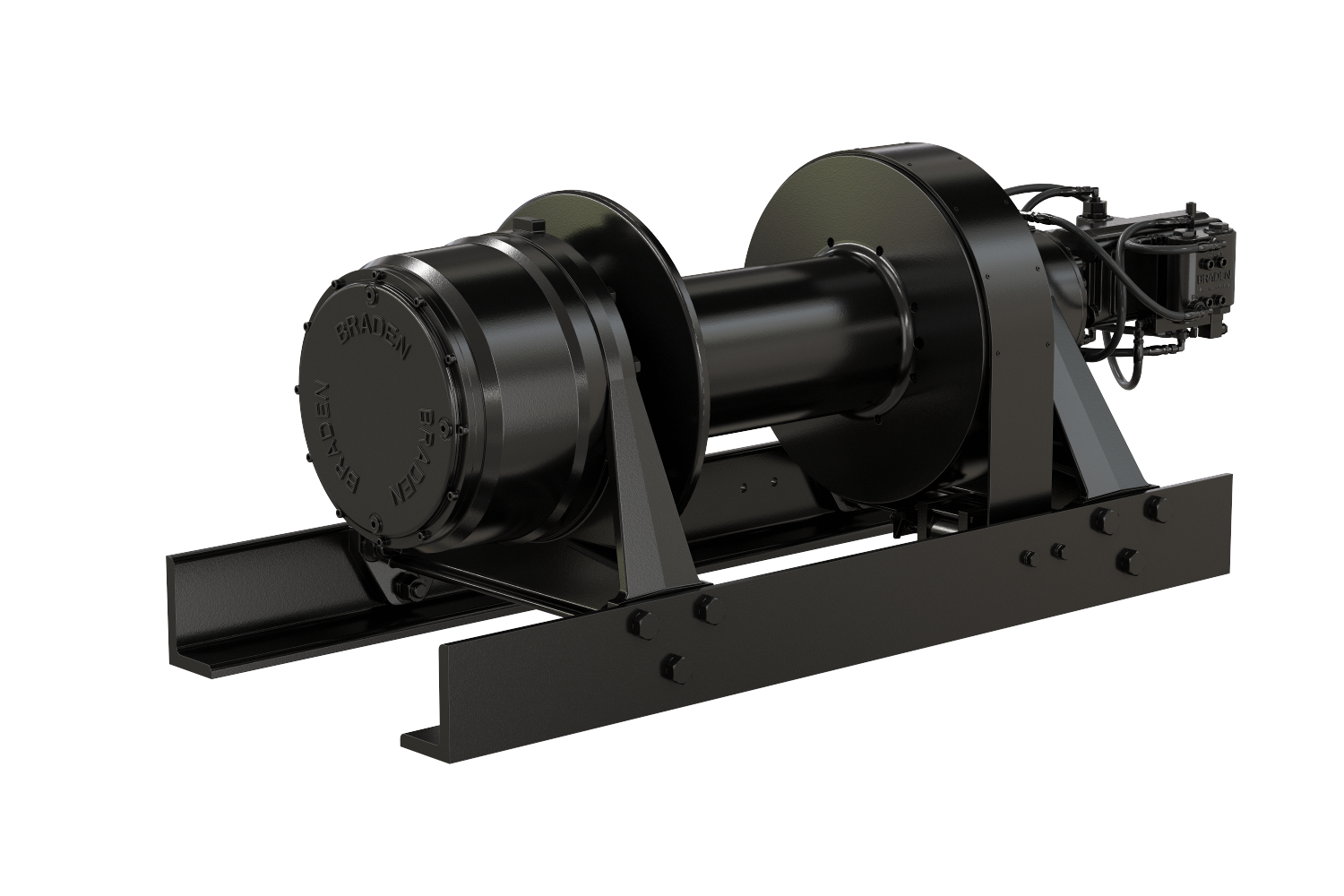

HP100B

Recovery Winches
Rated Line Pull:
100,000 lb (45,359 kg)

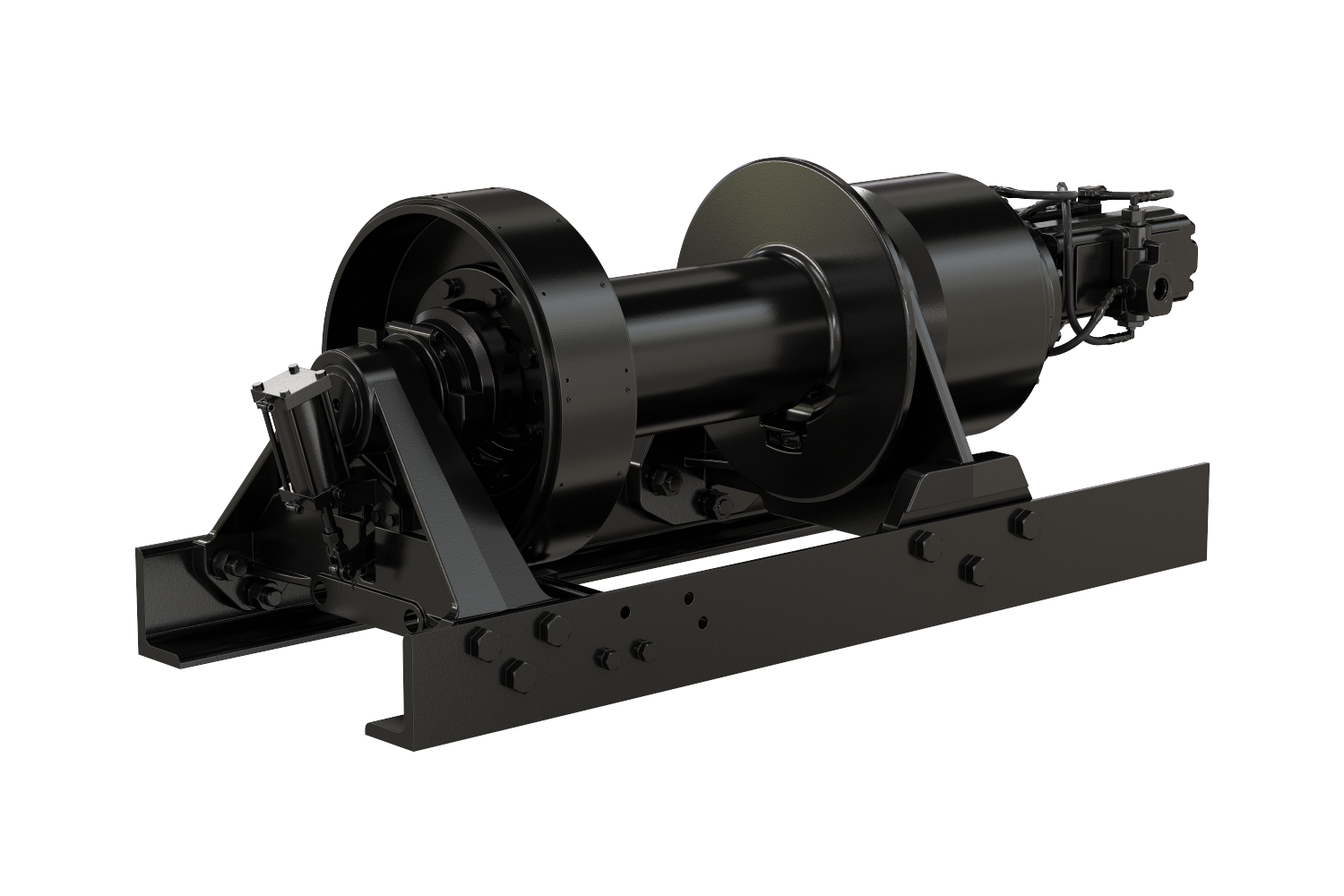

HP125B

Recovery Winches
Rated Line Pull:
125,000 lb (56,699 kg)

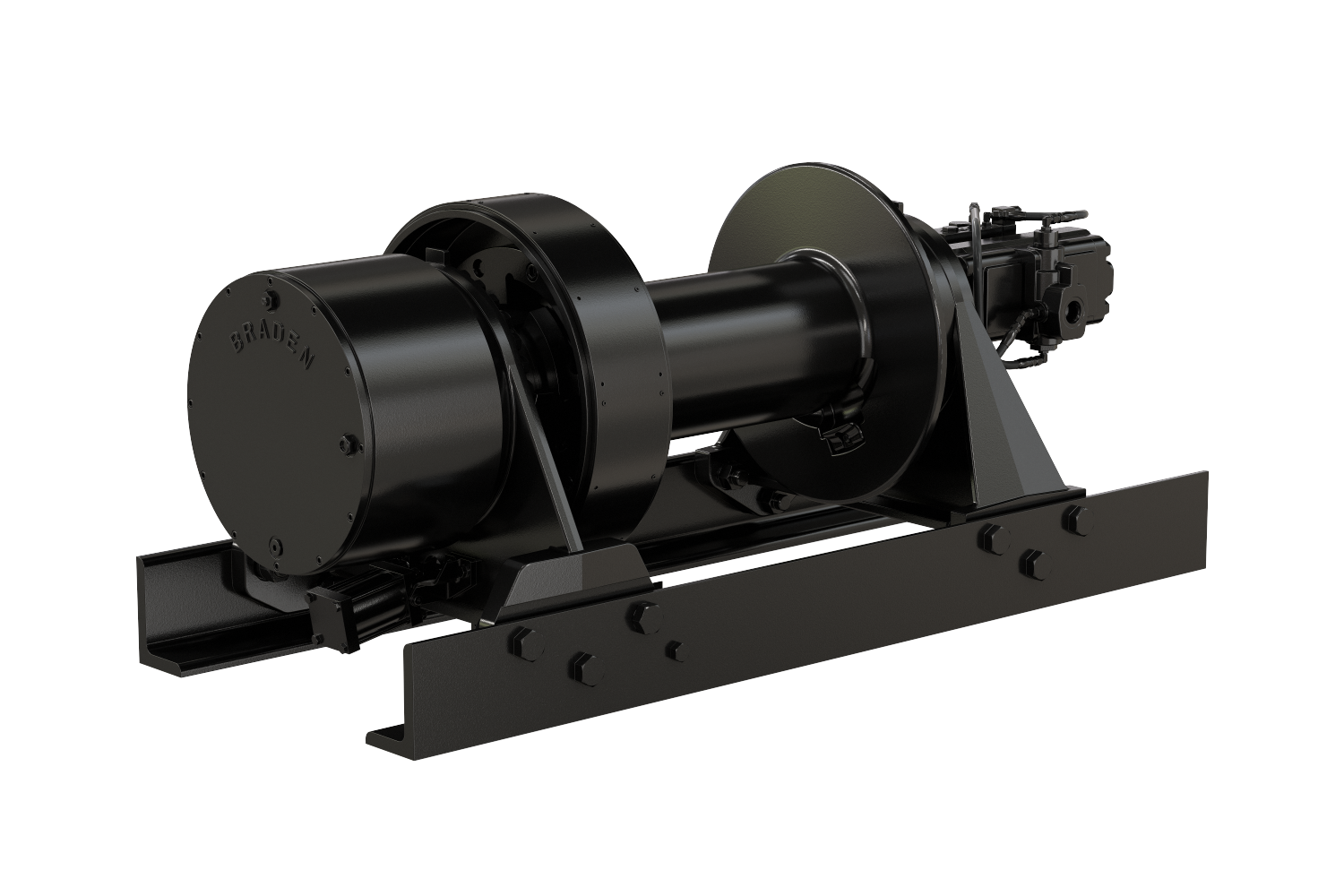

HP130A

Recovery Winches
Rated Line Pull:
130,000 lb (58,967 kg)

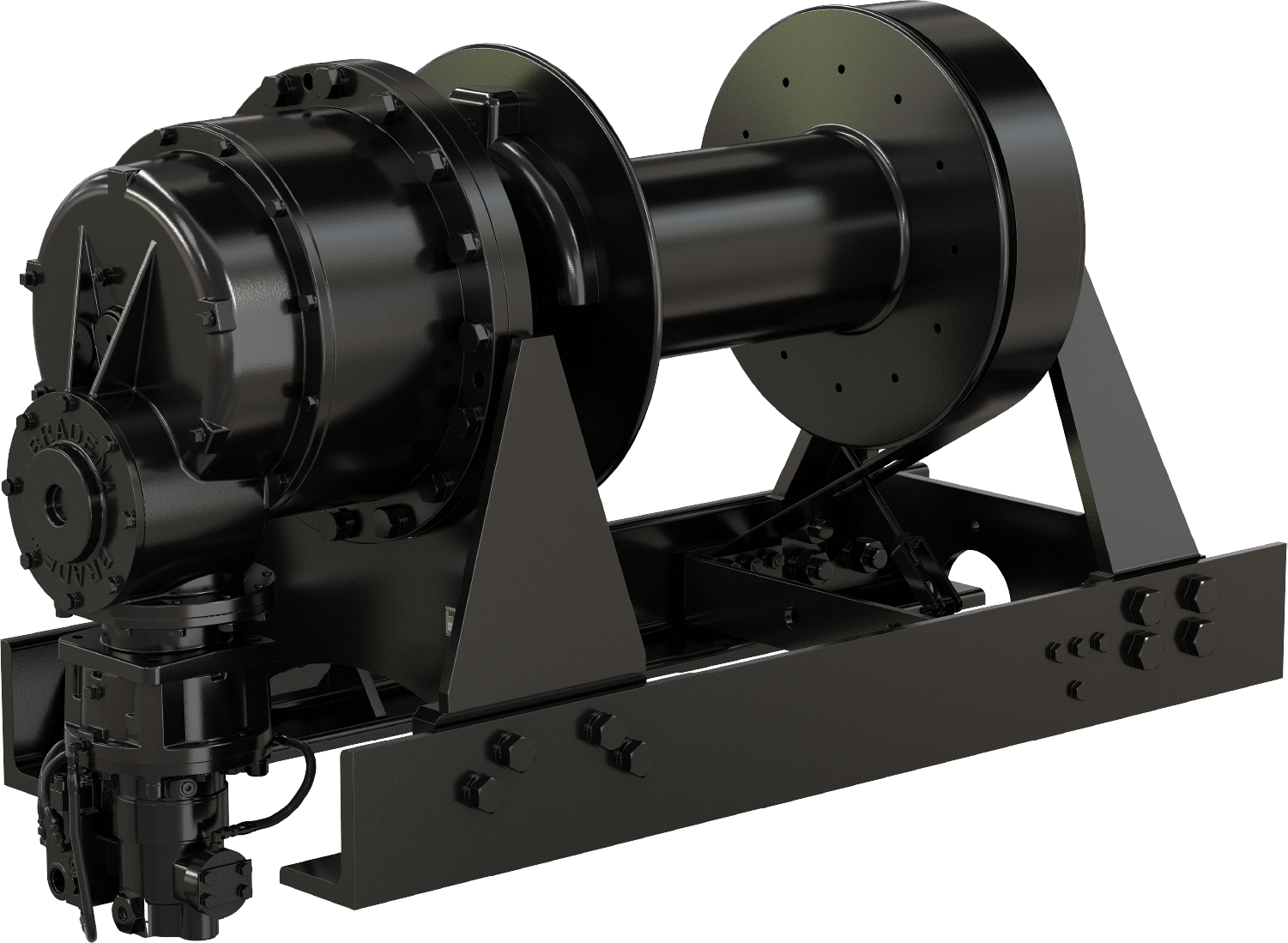

HP160A

Recovery Winches
Rated Line Pull:
160,000 lb (72,575 kg)
