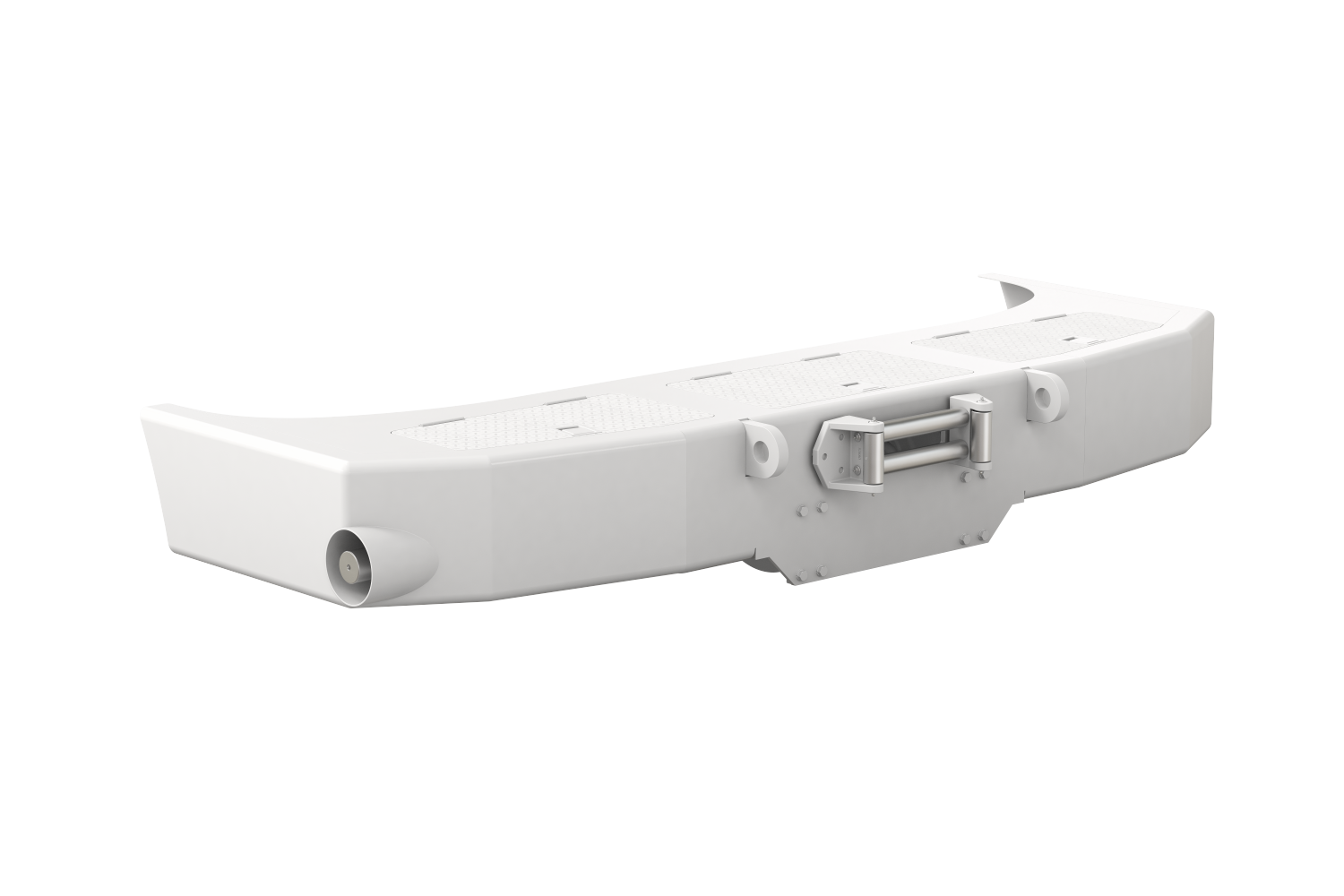

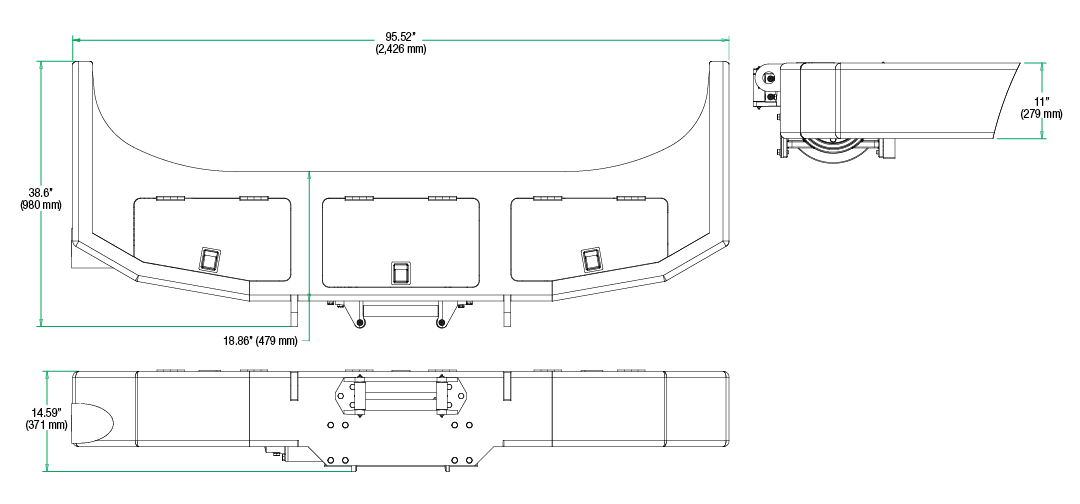

| Winch | PD35A |
|---|---|
| System Weight* | 965 lb (438 kg) |
| Vehicle Compatibility | Heavy/Special Duty, Class 7-9 |
| Rope Diameter | 5/8” (16 mm), 3/4” (19 mm), 7/8” (22 mm) |
| Extension Shaft | Curbside or Streetside |
| Toolbox | Single or Dual |
| Customization | Aluminum or Ductile Iron Capstan Cone Holder 3rd Tow-Eye Attachment Roller Fairlead |
| Layer 1 | Layer 2 | Layer 3 | Layer 4 | Layer 5 | ||
| Line Pull* | 35,000 lb (15,876 kg) |
28,690 lb (13,014 kg) |
24,300 lb (11,022 kg) |
21,080 lb (9,562 kg) |
18,620 lb (8,446 kg) |
|
| Line Speed* | 22 fpm (6.7 mpm) |
33 fpm (10.1 mpm) |
39 fpm (11.9 mpm) |
46 fpm (14 mpm) |
52 fpm (15.8 mpm) |
|
| Rope Capacity 1/2” (13 mm) 9/16” (14 mm) 5/8” (16 mm) |
31 ft (9.5 m) 26 ft (7.9 m) 23 ft (7 m) |
67 ft (20.4 m) 58 ft (17.7 m) 51 ft (15.5 m) |
109 ft (33.2 m) 96 ft (29.3 m) 85 ft (25.9 m) |
157 ft (47.9 m) 139 ft (42.4 m) 125 ft (38.1 m) |
211 ft (64.3 m) 188 ft (57.3 m) |
3271 ft (82.6 m) |
