| Gear Ratio | 47:1 |
|---|---|
| Approx. Unit Weight | 970 to 1,290 lb (440 to 585 kg) |
| Standard Motors | P049 (4.9 CID), V065/042 and V049/027 (Variable Displacement Piston) |

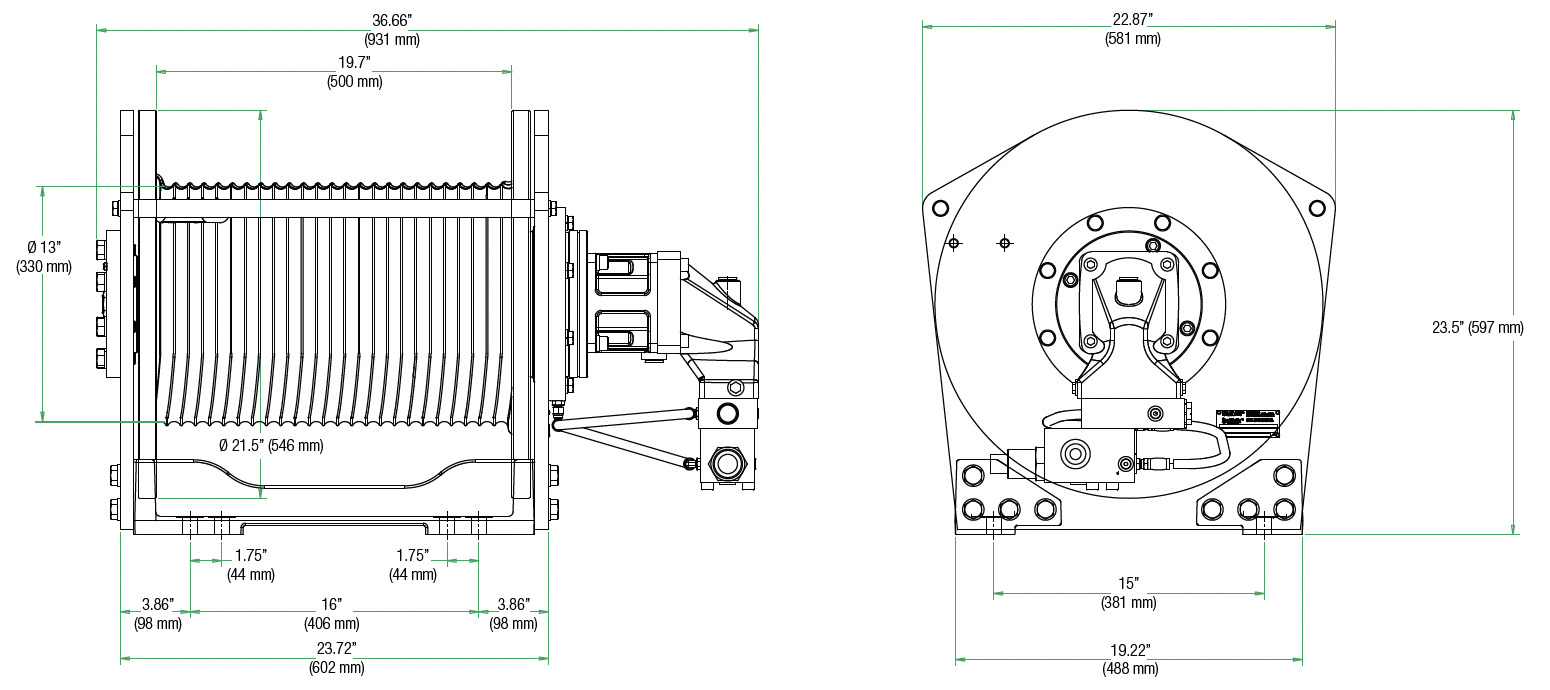

| Drum Sizes | 13” (330 mm) B x 21.5” (546 mm) F x 19.7” (500 mm) BF |
| Rope Diameter | 3/4” (19 mm) |
| Freefall Options | Controlled Freefall (CF) |
| Cable Management Options | Grooved Drum (standard), Tension Roller |
| API 2c Compliant | Yes (optional) |
| Layer 1 | Layer 2 | Layer 3 | Layer 4 | Layer 5 | |
|---|---|---|---|---|---|
| Line Pull* | |||||
| LOW | 17,500 lb (7,938 kg) | 15,780 lb (7,158 kg) | 14,360 lb (6,514 kg) | 13,180 lb (5978 kg) | 12,180 lb (5,525 kg) |
| HIGH | 11,490 lb (5,212 kg) | 10,320 lb (4,681 kg) | 9,390 lb (4,259 kg) | 8,620 lb (3,910 kg) | 7,970 lb (3,615 kg) |
| Line Speed* | |||||
| LOW | 127 fpm (38.7 mpm) | 141 fpm (43 mpm) | 155 fpm (47.2 mpm) | 169 fpm (51.5 mpm) | 180 fpm (54.8 mpm) |
| HIGH | 269 fpm (82 mpm) | 298 fpm (90.8 mpm) | 328 fpm (100 mpm) | 357 fpm (108.8 mpm) | 386 fpm (117.7 mpm) |
| Drum Capacity** | |||||
| 3/4” (19 mm) | 101 ft (30.8 m) | 212 ft (64.6 m) | 332 ft (101.2 m) | 462 ft (140.8 m) | 602 ft (183.5 m) |
