GM35A

Hoists

Rated Line Pull: 35,000 lb (15,876 kg)
Download GM Series Brochure Download GM27/35 Parts and Service Manual
Gear Ratio54:1
Unit Weight1,429 to 2,118 lb (648 to 961 kg)
Motor12 CID
Drum Sizes02 — 10” (254 mm) Barrel x 24” (607 mm) Flange x 11” (280 mm) Between Flanges
05 — 10” (254 mm) Barrel x 34” (864 mm) Flange x 29” (737 mm) Between Flanges
Rope Diameters3/4” (19 mm), 7/8” (22 mm)
Rope Storage02 — 334 ft (102 m ) for 7/8” (22 mm)
05 — 2,169 ft (661 m ) for 7/8” (22 mm)
Specifications are representative of common configuration. Consult factory for additional options.

Performance

Layer 1Layer 2Layer 3Layer 4Layer 5Layer 6Layer 7
GM35A-54120-02 EQUAL SPEED REVERSE
Line Pull*35,000 lb
(15,876 kg)		30,140 lb
(13,761 kg)		26,740 lb
(12,007 kg)		23,600 lb
(10,705 kg) 		21,290 lb
(9,657 kg) 		19,390 lb
(8,795 kg) 		17,800 lb
(8,074 kg)
Line Speed*105 fpm
(32 mph) 		122 fpm
(37 mph)		139 fpm
(42 mph)		156 fpm
(48 mph)		173 fpm
(53 mph)		190 fpm
(58 mph)		207 fpm
(63 mph)
Drum Capacity32 ft
(10 m) 		69 ft
(21 m)		112 ft
(34 m)		159 ft
(49 m)		212 ft
(65 m)		271 ft
(83 m)		334 ft
(102 m)
Layer 1Layer 2Layer 3Layer 4Layer 5Layer 6Layer 7Layer 8Layer 9Layer 10Layer 11Layer 12Layer 13
GM35A-HSR-54/12120-05 HIGH SPEED REVERSE**
Line Pull*35,000 lb
(15,876 kg)		30,140 lb
(13,761 kg)		26,740 lb
(12,007 kg)		23,600 lb
(10,705 kg) 		21,290 lb
(9,657 kg) 		19,390 lb
(8,795 kg)		17,800 lb
(8,074 kg) 		16,450 lb
(7,462 kg)		15,300 lb
(6,940 kg)		14,290 lb
(6,482 kg)		13,410 lb
(6,083 kg)		12,630 lb
(5,729 kg) 		11,940 lb
(5,416 kg)
Line Speed*105 fpm
(32 mph) 		122 fpm
(37 mph)		139 fpm
(42 mph)		156 fpm
(48 mph)		173 fpm
(53 mph)		190 fpm
(58 mph)		207 fpm
(63 mph)		223 fpm
(68 mph)		240 fpm
(73 mph)		257 fpm
(78 mph)		273 fpm
(83 mph)		290 fpm
(89 mph) 		307 fpm
(94 mph)
Drum Capacity84 ft
(26 m) 		183 ft
(56 m)		295 ft
(90 m)		 421 ft
(128 m)		561 ft
(171 m)		714 ft
(218 m)		881 ft
(269 m)		1,062 ft
(324 m)		1,256 ft
(383 m)		1,464 ft
(446 m)		1,685 ft
(514 m)		1,921 ft
(586 m) 		2,169 ft
(661 m)
*Based on pressure of 2,500 psi (173 bar), 115 gpm (435 lpm), 7/8” (22 mm) rope and 12 CID motor. Actual performance will vary dependent on hydraulic system, motor, drum and cable sizes. **High Speed Reverse (HSR) reel out line speed is 4.4 times faster than reel in speed. In reverse rotation (reel out), the maximum load can be fully controlled at a line speed equal to the reel in speed.

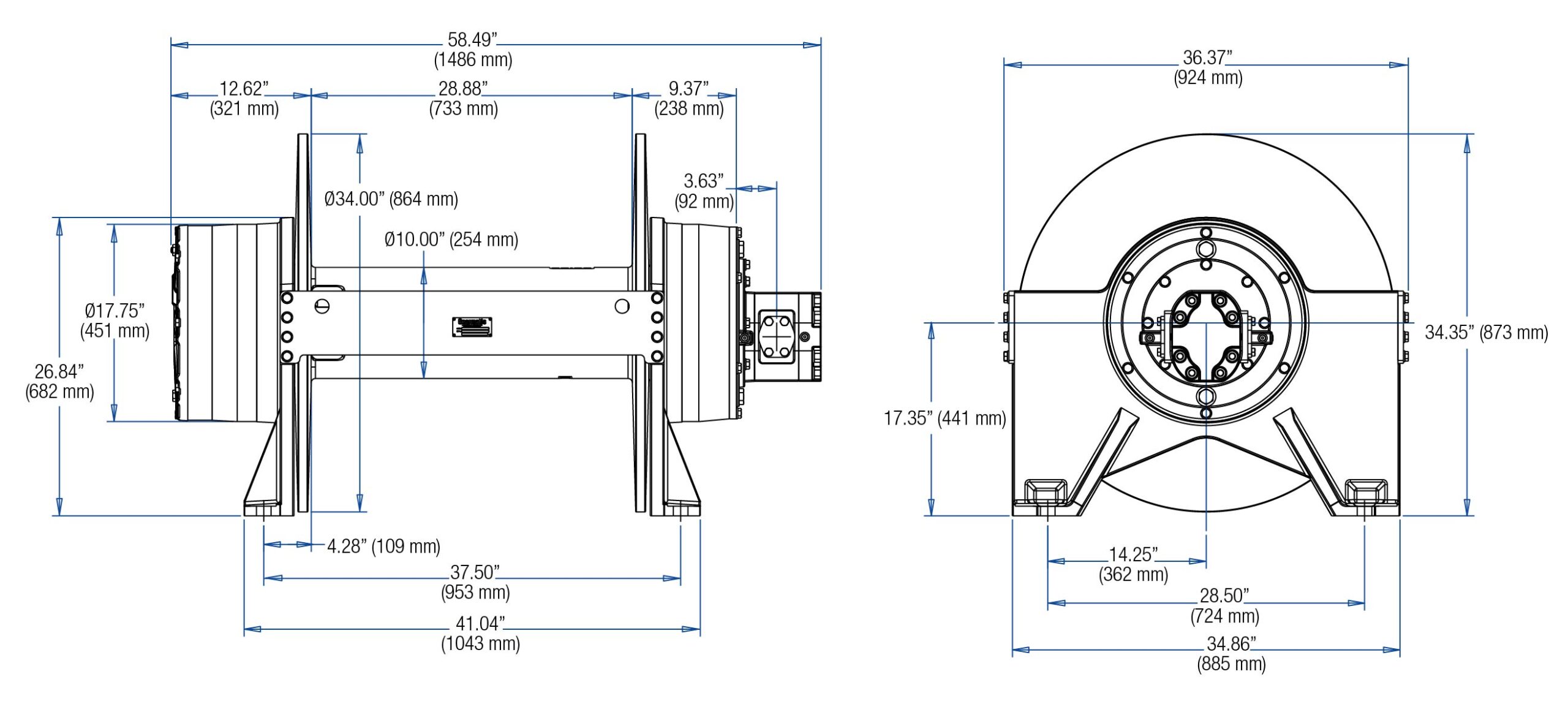

Dimensions
