| Gear Ratio | 40:1 |
|---|---|
| Unit Weight | 1,327 to 2,009 lb (602 to 911 kg) |
| Motor | 12 CID |

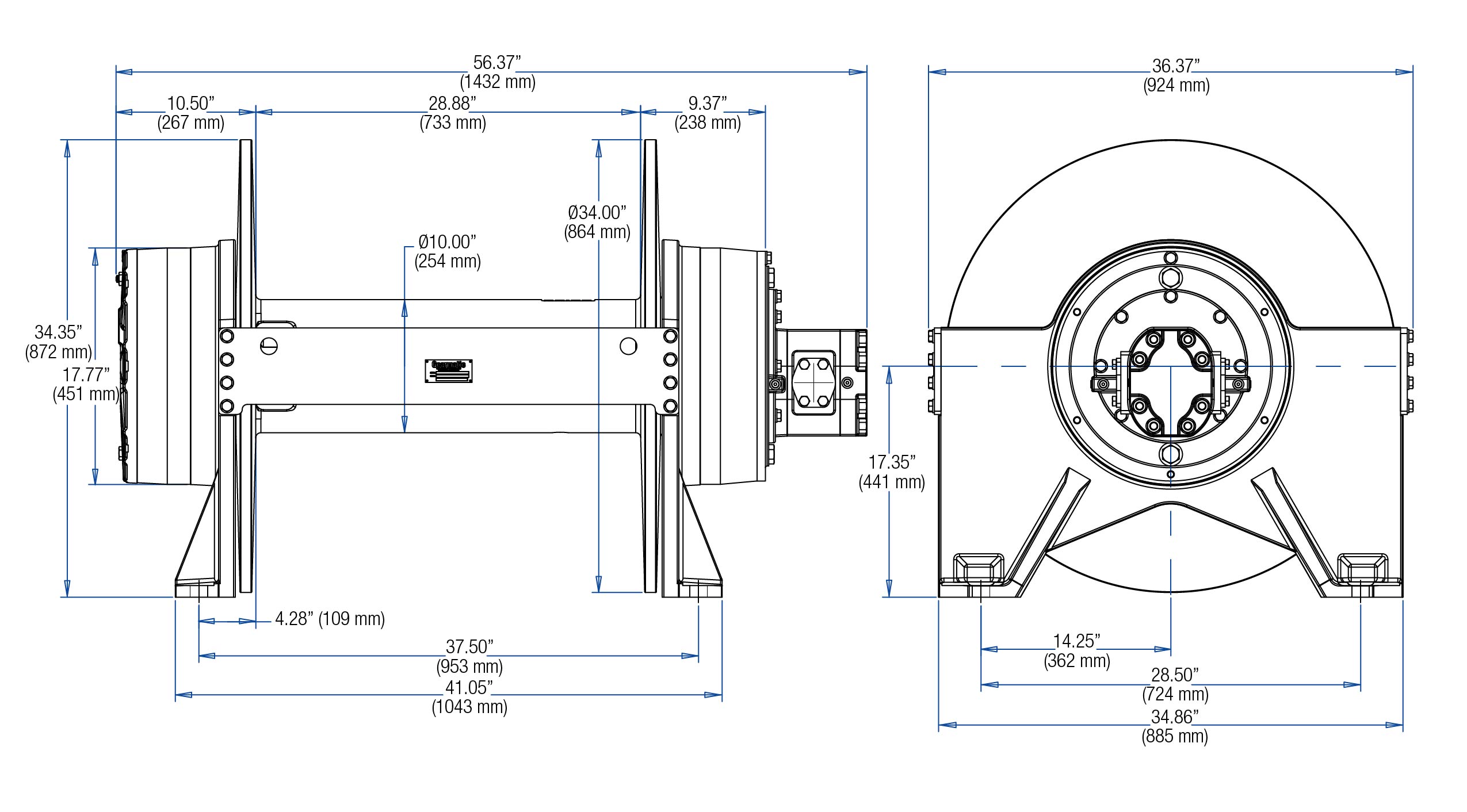

| Drum Sizes | 02 — 10” (254 mm) Barrel x 24” (607 mm) Flange x 11” (280 mm) Between Flanges 05 — 10” (254 mm) Barrel x 34” (864 mm) Flange x 29” (737 mm) Between Flanges |
| Rope Diameters | 3/4” (19 mm), 7/8” (22 mm) |
| Rope Storage | 02 — 334 ft (102 m ) for 7/8” (22 mm) 05 — 2,169 ft (661 m ) for 7/8” (22 mm) |
| Layer 1 | Layer 2 | Layer 3 | Layer 4 | Layer 5 | Layer 6 | Layer 7 | |
| GM27A-40120-02 EQUAL SPEED REVERSE | |||||||
| Line Pull* | 27,000 lb (12,247 kg) |
23,250 lb (10,546 kg) |
20,420 lb (9,262 kg) |
18,200 lb (8,255 kg) |
16,420 lb (7,448 kg) |
14,960 lb (6,786 kg) |
13,730 lb (6,228 kg) |
| Line Speed* | 143 fpm (44 mph) |
165 fpm (51 mph) |
189 fpm (58 mph) |
212 fpm (65 mph) |
235 fpm (72 mph) |
258 fpm (79 mph) |
280 fpm (86 mph) |
| Drum Capacity | 32 ft (10 m) |
69 ft (21 m) |
112 ft (34 m) |
159 ft (49 m) |
212 ft (65 m) |
271 ft (83 m) |
334 ft (102 m) |
| Layer 1 | Layer 2 | Layer 3 | Layer 4 | Layer 5 | Layer 6 | Layer 7 | Layer 8 | Layer 9 | Layer 10 | Layer 11 | Layer 12 | Layer 13 | |
| GM27A-HSR-40/9120-05 HIGH SPEED REVERSE** | |||||||||||||
| Line Pull* | 27,000 lb (12,247 kg) |
23,250 lb (10,546 kg) |
20,420 lb (9,262 kg) |
18,200 lb (8,255 kg) |
16,420 lb (7,448 kg) |
14,960 lb (6,786 kg) |
13,730 lb (6,228 kg) |
12,690 lb (5,756 kg) |
11,800 lb (5,352 kg) |
11,020 lb (5,000 kg) |
10,340 lb (4,690 kg) |
9,740 lb (4,418 kg) |
9,210 lb (4,178 kg) |
| Line Speed* | 143 fpm (44 mph) |
165 fpm (51 mph) |
189 fpm (58 mph) |
212 fpm (65 mph) |
235 fpm (72 mph) |
258 fpm (79 mph) |
280 fpm (86 mph) |
304 fpm (93 mph) |
327 fpm (100 ph) |
350 fpm (107 mph) |
373 fpm (114 mph) |
396 fpm (121 mph) |
420 fpm (128 mph) |
| Drum Capacity | 84 ft (26 m) |
183 ft (56 m) |
295 ft (90 m) |
421 ft (128 m) |
561 ft (171 m) |
714 ft (218 m) |
881 ft (269 m) |
1,062 ft (324 m) |
1,256 ft (383 m) |
1,464 ft (446 m) |
1,685 ft (514 m) |
1,921 ft (586 m) |
2,169 ft (661 m) |
