| Gear Ratio | 36:1 |
|---|---|
| Unit Weight | 1,750 lb (794 kg) |
| Motors | 2-Speed Motor for Winching; Gear Motor for Hoisting |

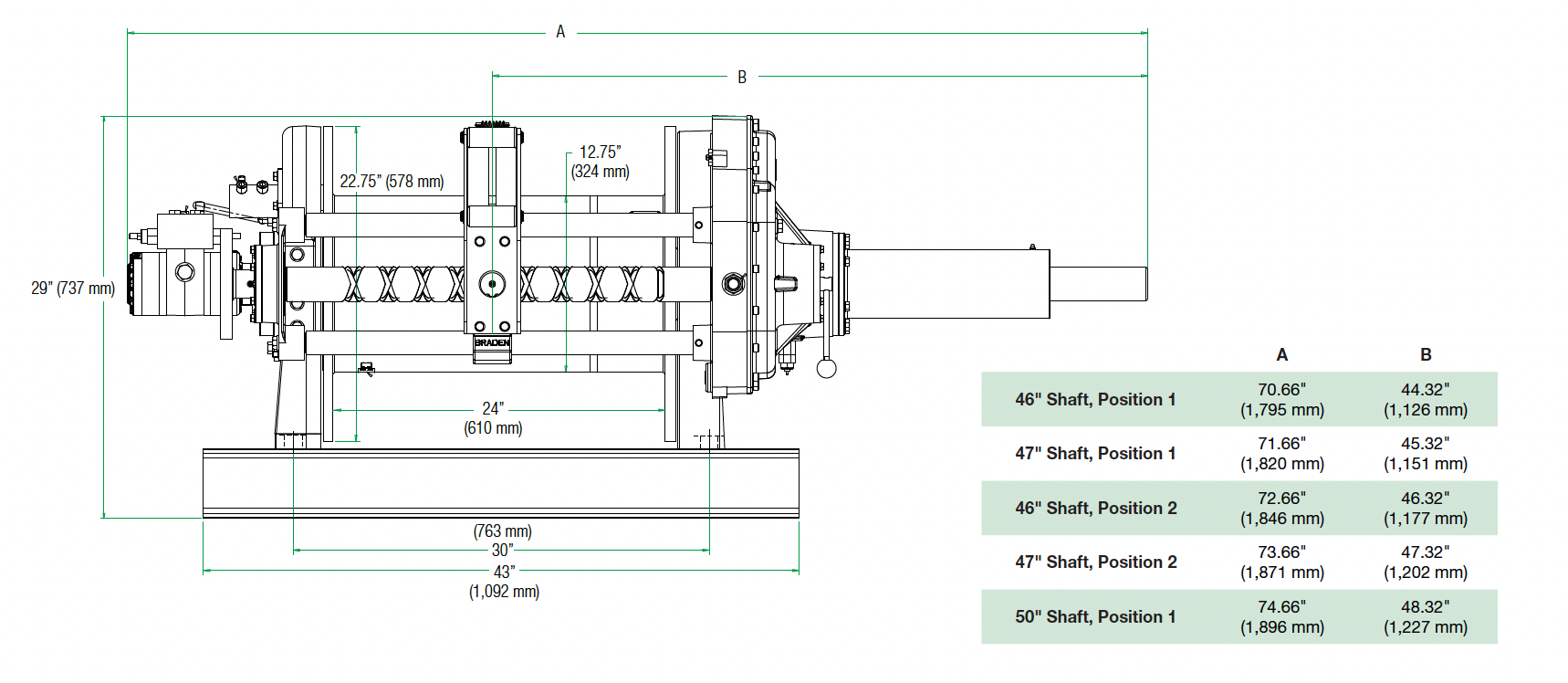

| Drum Size | 12.75" (324 mm) Barrel x 22.75" (578 mm) Flange x 24" (610 mm) Between Flanges |
| Rope Diameters | 3/8" (10 mm), 7/16" (11 mm), 1/2" (13 mm), 9/16" (14 mm), 5/8" (16 mm) |
| Rope Storage | 1,537 ft (468 m) for 9/16" (14 mm) Rope |
| Layer 1 | Layer 2 | Layer 3 | Layer 4 | |
|---|---|---|---|---|
| LOW SPEED WINCHING | ||||
| Line Pull* | 20,000 lb (9,072 kg) | 18,440 lb (8,364 kg) | 17,100 lb (7,756 kg) | 15,950 lb (7,235 kg) |
| Line Speed* | 34 fpm (10 mpm) | 37 fpm (11 mpm) | 40 fpm (12 mpm) | 43 fpm (13 mpm) |
| Layer 1 | Layer 2 | Layer 3 | Layer 4 | |
|---|---|---|---|---|
| HIGH SPEED WINCHING | ||||
| Line Pull* | 9,900 lb (4,491 kg) | 9,120 lb (4,137 kg) | 8,460 lb (3,837 kg) | 7,890 lb (3,579 kg) |
| Line Speed* | 45 fpm (14 mpm) | 49 fpm (15 mpm) | 53 fpm (16 mpm) | 57 fpm (17 mpm) |
